In the automotive sector, electrical insulation materials must withstand demanding conditions—extreme temperatures, mechanical vibration, chemical exposure, and stringent safety requirements.
FEP heat shrink tubing has emerged as a preferred solution due to its excellent dielectric properties, thermal stability, and chemical resistance.
To ensure reliable performance, FEP shrink tubing must conform to a series of internationally recognized electrical insulation standards and test methods.

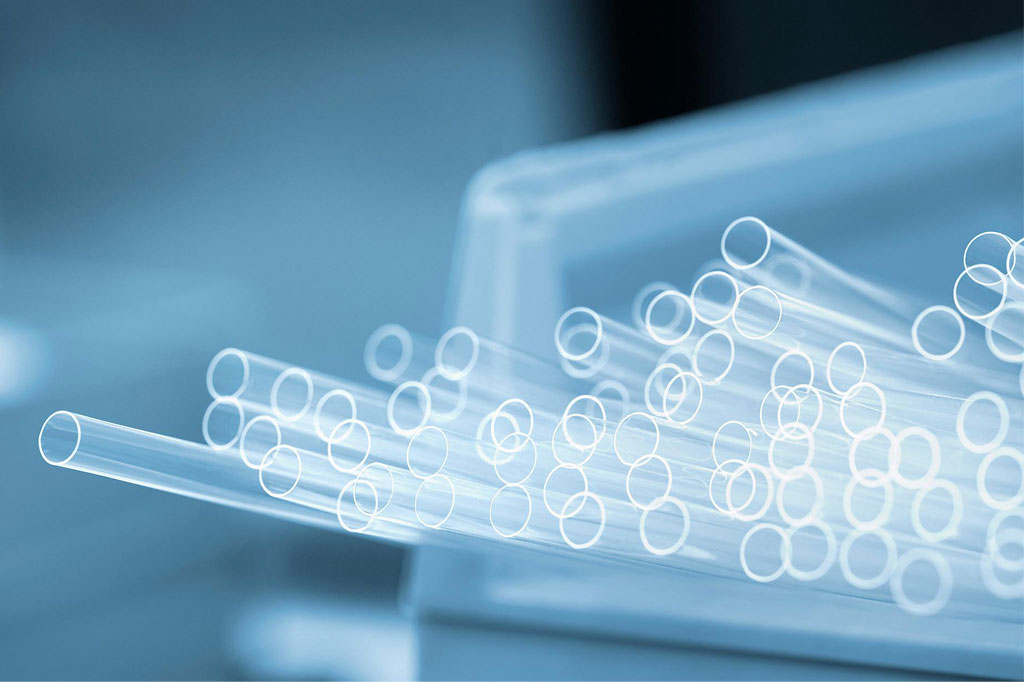

1. Overview of FEP Heat Shrink Tubing
Fluorinated ethylene propylene (FEP) is a copolymer of hexafluoropropylene and tetrafluoroethylene, possessing many of PTFE’s advantages—high dielectric strength and chemical inertness—but with superior processability. When manufactured into cross-linked heat shrink tubing, FEP exhibits:
- High dielectric strength: Typically ≥ 15 kV/mm, ensuring robust insulation even at thin wall thicknesses.
- Wide operating temperature range: From – 55 °C up to + 200 °C continuous, accommodating under-hood and near-engine applications.
- Excellent chemical resistance: Unaffected by fuels, oils, coolants, solvents, and cleaning agents.
- Low flammability and smoke generation: Critical for meeting automotive safety and emissions requirements.
These attributes make FEP heat shrink tubing ideal for protecting wiring harnesses, sensor leads, battery interconnects in electric vehicles, and high-voltage cable assemblies.
2. Key Electrical Insulation Performance Metrics
Manufacturers and OEMs specify quantitative performance criteria to validate a tubing material’s suitability:
| Property | Test Method | Typical Requirement |
|---|---|---|
| Dielectric Strength | ASTM D149 | ≥ 15 kV/mm |
| Volume Resistivity | ASTM D876 | ≥ 1 × 10¹⁴ Ω·cm |
| Withstanding Voltage | UL 224 | 2,500 V, 60 s no breakdown |
| Heat Shock | UL 224 | 250 °C × 4 h no cracking |
| Flammability (VW-1) | ASTM D2671 C method | Pass |
These metrics ensure the tubing can sustain high voltages, resist leakage currents, endure thermal cycling, and maintain insulation integrity under mechanical stress.
3. UL 224: Standard for Extruded Insulating Tubing
Underwriters Laboratories’ UL 224 defines requirements for extruded thermoplastic tubing used as electrical insulation. Key UL 224 tests include:
- Dielectric Withstanding Voltage: Tubing must withstand specified AC test potentials (e.g., 2,500 V for FEP) for 60 seconds without breakdown.
- Heat Shock and Cold Shock: Evaluates resistance to cracking or flowing under thermal extremes (e.g., 250 °C heat shock).
- Flammability (VW-1): Vertical flame test ensuring self-extinguishing behavior.
- Tensile and Elongation Properties: Verifies mechanical resilience before and after thermal aging.
Achieving UL 224 recognition enables OEMs to confidently specify FEP tubing for critical insulation applications.
4. SAE-AMS-DTL-23053: Aerospace-Derived Specification
Originally an aerospace standard, SAE-AMS-DTL-23053 (formerly MIL-DTL-23053) has been adopted by many automotive Tier 1 suppliers for its rigorous requirements on heat shrink tubing:
- Class 1 (Polyolefin), Class 3 (FEP): Defines material composition, wall thickness tolerances, shrink ratio (typically 2:1 or 3:1), and performance criteria.
- Electrical Tests: Includes dielectric strength, insulation resistance, and volume resistivity consistent with ASTM D149 and D876.
- Environmental Resistance: Chemical, fluid, and UV exposure tests aligned with automotive service life expectations.
FEP shrink tubing conforming to AMS-DTL-23053 Class 3 ensures compatibility with the most demanding under-hood and high-voltage powertrain environments.
5. ASTM Test Methods for Dielectric and Insulation Properties
Automotive engineers rely on ASTM International standards to quantify electrical performance:
- ASTM D149 (Dielectric Strength): Measures breakdown voltage per unit thickness under controlled conditions.
- ASTM D876 (Volume Resistivity): Assesses bulk insulating resistance to leakage currents.
- ASTM D2671 (Tensile and Elongation): Validates mechanical integrity pre- and post-aging.
Compliance with these methods provides reproducible, comparable data across suppliers and laboratories.
6. Automotive-Specific Considerations
Beyond general electrical tests, automotive applications impose additional constraints:
- EMI Shielding and Grounding: Tubing must not compromise braided or foil shields; materials should exhibit low dielectric loss.
- High-Voltage EV Systems: Insulation coordination per ISO 6469 (electric vehicle safety) demands clearances and creepage distances, influencing minimum wall thickness and dielectric ratings.
- Environmental Cycling: Conformance to ISO 16750-4 (electrical loads) and ISO 16750-2 (mechanical loads) ensures insulation remains intact through vibration, temperature shocks, and humidity.
OEM approval processes often require batch traceability and material certifications aligned with IATF 16949 quality management.
